Water Flushing Controller & System Monitor

Introduction:
Keep your Reverse Osmosis system running at peak efficiency with the Water Flushing Controller. Designed for commercial and industrial RO setups, this intelligent controller automates the membrane flushing process—the most critical maintenance task for extending membrane life and ensuring high water purity.

By automatically rinsing the RO membrane at startup, shutdown, or scheduled intervals, this unit prevents mineral scaling and “TDS Creep,” ensuring your first drop of water is as pure as your last.

Key Features:

• Fully Automatic Operation: Our  Water Flushing Controller Eliminates the need for manual flushing, protecting your membranes 24/7.

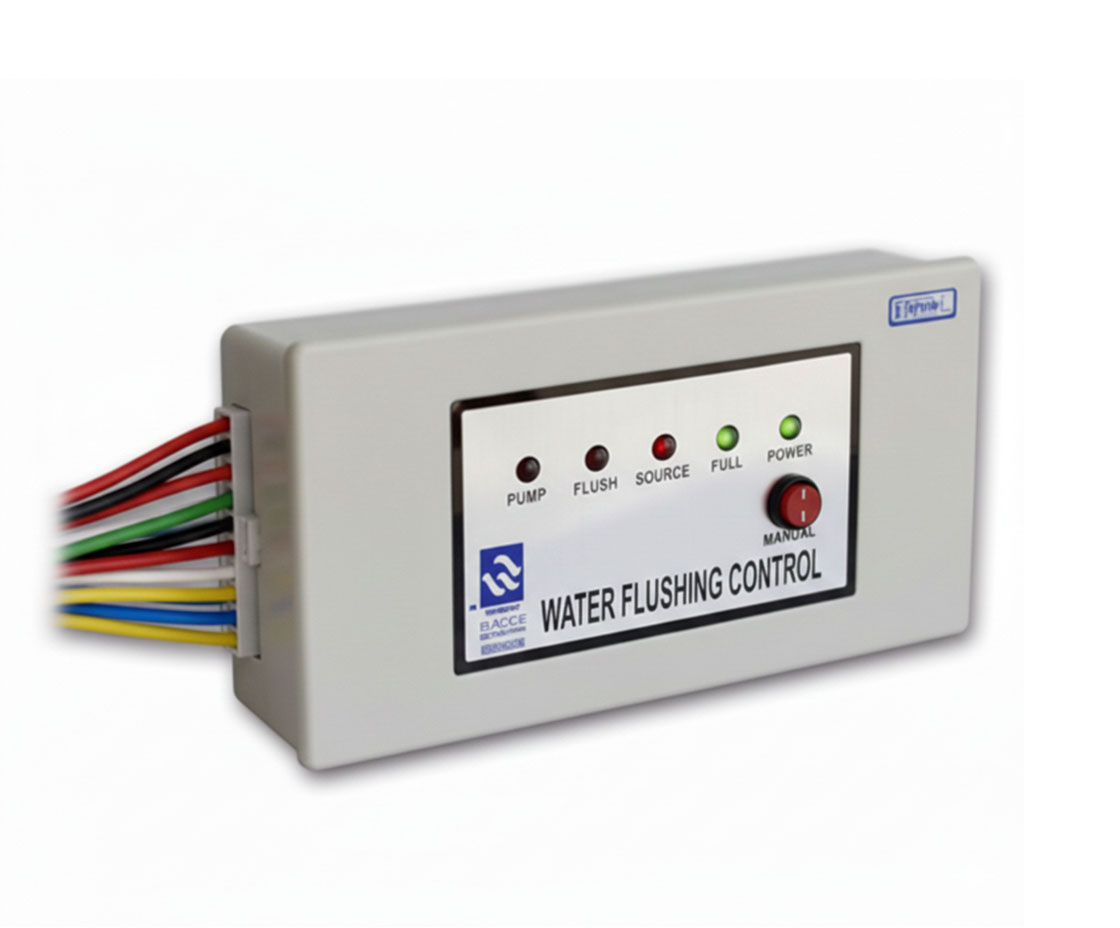

• Intuitive LED Status Panel: Real-time monitoring for:

  • PUMP: Indicates when the high-pressure pump is active.

  • FLUSH:Our  Water Flushing Controller Lights up during the automated cleaning cycle.

  • SOURCE: Alerts you to the status of the incoming feed water.

  • FULL: Signals when the storage tank is at capacity.

  • POWER: Confirms the unit is energized and operational.

• Manual Override: Includes a dedicated Manual Flush Button for instant maintenance or system testing.

• System Protection: Integrated logic to shut down the pump during low source pressure or when the tank is full, preventing equipment burnout.

• Heavy-Duty Housing: Durable, industrial-grade casing with easy-access wiring terminals for professional installation.

Flow Chart of Water Flushing Controller:
