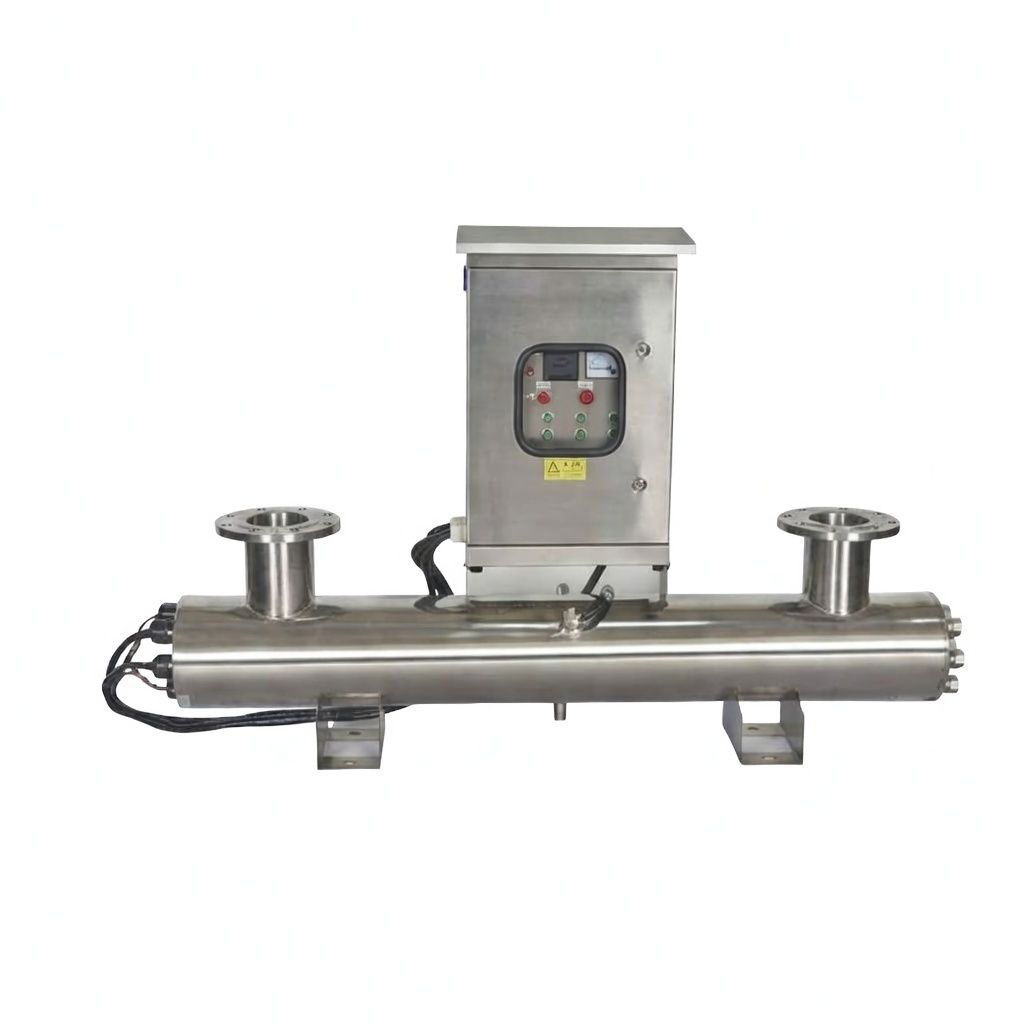

UV-Sterilizer 100 GPM-H/HTM – UV Disinfection System

The UV-Sterilizer 100 GPM-H/HTM is a powerful commercial UV water sterilizer designed to provide safe, chemical-free disinfection for high-flow water systems. Perfect for commercial, industrial, or large residential applications needing up to 100 gallons per minute (about 380 liters per minute) of clean, disinfected water.

Key Features of UV-Sterilizer 100 GPM-H/HTM:

• High Flow Performance: Purifies 100 gallons per minute with a 99.99% germ-kill rate.

• Rugged Build: Features a heavy-duty, corrosion-resistant 304 stainless steel chamber.

• High-Output Lamps: Premium glass and ceramic lamps for maximum germicidal power.

• Quartz Protection: Transparent sleeves protect lamps while ensuring full UV strength.

• Smart Monitoring: Built-in control panel with status lights, timers, and safety alarms.

• Energy Efficient: Low power draw; lamps last roughly one year (~9,000 hours).

• Versatile Setup: Easy horizontal or vertical mounting for 110V or 220V systems.

• High-Pressure Ready: Rated for up to 125 PSI for heavy-duty plumbing.

• Eco-Friendly: 100% chemical-free purification with zero toxic byproducts

Benefits of UV-Sterilizer 100 GPM-H/HTM:

• Kills up to 99.99% of harmful pathogens quickly and effectively.
• Improves water safety without affecting taste, odor, or pH.
• Low maintenance — simple lamp replacement.
• Ideal for homes with wells, restaurants, hotels, factories, farms, bottling plants, or any high-volume water use.

Product Specifications

• Model: UV-Ultraviolet 100 GPM-H/HTM
• Flow Rate: 100 GPM (gallons per minute)
• UV Dose: ≥30,000 μW·s/cm² at 254 nm
• Material: 304 Stainless Steel chamber
• Lamp Life: ~9,000 hours
• Power: 110/220V, 50/60Hz (check exact wattage based on lamps, often 200–500W total)
• Inlet/Outlet: Flanged connections (size varies, commonly 2–3 inches)
• Max Pressure: 125 PSI
• Installation: Horizontal or vertical

Why Choose This UV Sterilizer?

• Safe & Natural: Destroys microbes with UV light only.
• High Capacity: Ideal for large homes, offices, or commercial use.
• Easy to Install & Maintain: Plug-and-play with visual indicators.
• Cost-Effective: Low energy use and long lamp life.

Applications:

• Municipal & well water treatment
• Food & beverage processing
• Hotels, restaurants, hospitals
• Aquaculture & hydroponics
• Swimming pools & spas (chloramine reduction)
